Sensors for every point of emission.

A curated catalog of the instruments we specify, install and service most often. Certificates, calibration gas and commissioning are confirmed on the quotation for the unit we propose.

Category

Industrial Gas

LC-CEMS-01Stack Emissions

Continuous Emission Monitor

Multi-gas extractive analyzer engineered for in-stack monitoring of combustion sources, cement kilns, and waste incinerators.

Parameters: SO₂ · NOₓ · CO · CO₂ · O₂
Range: 0 – 5000 ppm
Accuracy: ±1% of full scale
Output: Modbus RTU / 4–20 mA / Ethernet
Power: 230 VAC · 350 W
Installation: In-stack extractive probe + 19" rack cabinet
Calibration: Auto-zero & span every 24 h via cylinder gas
Typical standards: US EPA 40 CFR Part 60 · EN 15267-3 · MCERTS

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

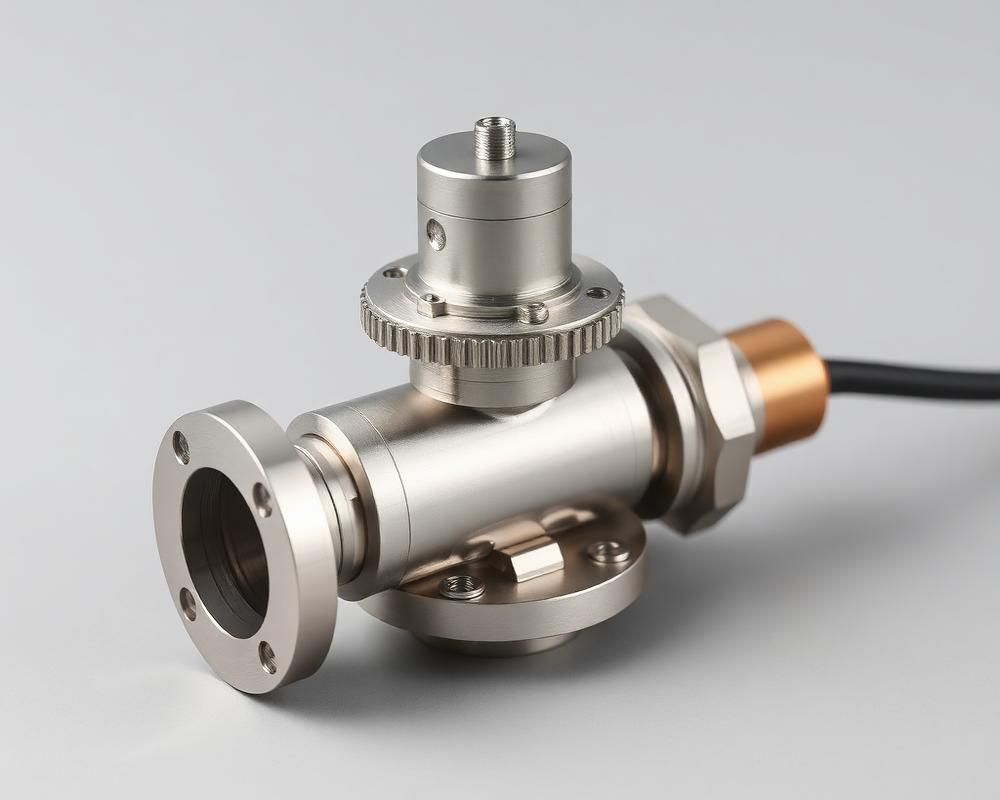

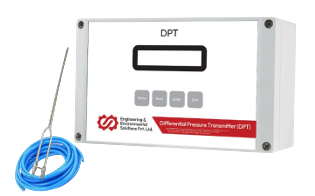

LC-FLW-14Flow & Velocity

Stack Gas Flow Probe

Differential pressure averaging Pitot for flue gas velocity, volumetric flow, and mass-emission rate calculations.

Parameters: Velocity · Flow rate · Temperature · Pressure
Range: 1 – 60 m/s
Accuracy: ±1.5% of reading
Output: HART / 4–20 mA
Power: 24 VDC loop-powered
Installation: Stack flange, weld-on coupling
Calibration: Pitot traverse on commissioning · annual check
Typical standards: ATEX Zone 2 · IECEx

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

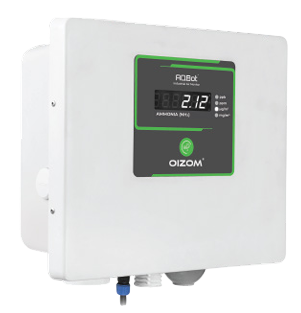

LC-VOC-05Volatile Compounds

AQBot™ Single-Parameter Monitor

Oizom AQBot industrial single-parameter monitor, configured here for TVOC (PID) for leak detection, fence-line, and process alerts. Built-in display, relays, and optional siren/strobe for local alarm and mitigation control.

Parameters: TVOC
Range: 0 – 200 ppm (OZTVOC_2)
Accuracy: < ±5% FS (at 20±5 °C / 50±20% RH)
Output: Ethernet / Modbus / 4–20 mA / relay · GSM · Wi-Fi · LoRa
Power: 90–265 VAC or 12/24 VDC · ~3.5 W
Installation: Pole or wall mount · NEMA 4X FRP · IP66
Calibration: NIST-traceable lab cal · on-site span gas or collocation
Typical standards: CE · FCC · IP66 · NEMA 4X · RoHS · PTCRB

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

Category

Ambient Air

LC-AQMS-22Ambient Air

Ambient Air Quality Station

All-weather reference-grade station for community, industrial fence-line, and city-wide air quality networks across West Africa.

Parameters: PM2.5 · PM10 · NO₂ · O₃ · SO₂ · CO
Range: 0 – 1000 µg/m³
Accuracy: ±5 µg/m³ (PM)
Output: LoRaWAN / 4G / MQTT
Power: Solar 80 W + 100 Ah battery · grid optional
Installation: Pole or rooftop, IP66 enclosure
Calibration: Quarterly field audit · annual lab recert
Typical standards: US EPA FEM · ISO 17025

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

LC-PD-12Ambient Air

Polludrone® Ambient AQMS

Oizom Polludrone continuous ambient station for cities, campuses, highways and industrial fence-lines. Modular PM, gas, noise and weather sensing in one IP66 / NEMA 4X outdoor enclosure, with solar or AC power and cloud or on-prem data.

Parameters: PM1 · PM2.5 · PM10 · TSP · CO · CO₂ · NO₂ · SO₂ · O₃ · H₂S · Noise
Range: PM up to 5000 µg/m³ · gases per configured module
Accuracy: Module dependent · lab and collocation calibrated
Output: GSM / LTE · Wi-Fi · Ethernet · LoRa · Modbus · MQTT / HTTPS
Power: 90–265 VAC or solar · LiFePO₄ backup (~12 h) · ~5–7 W
Installation: Pole, wall or smart-pole mount · IP66 / NEMA 4X
Calibration: NIST-traceable lab cal · on-site span gas or collocation
Typical standards: CE · FCC · IP66 · NEMA 4X · RoHS

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

LC-DR-08Particulates

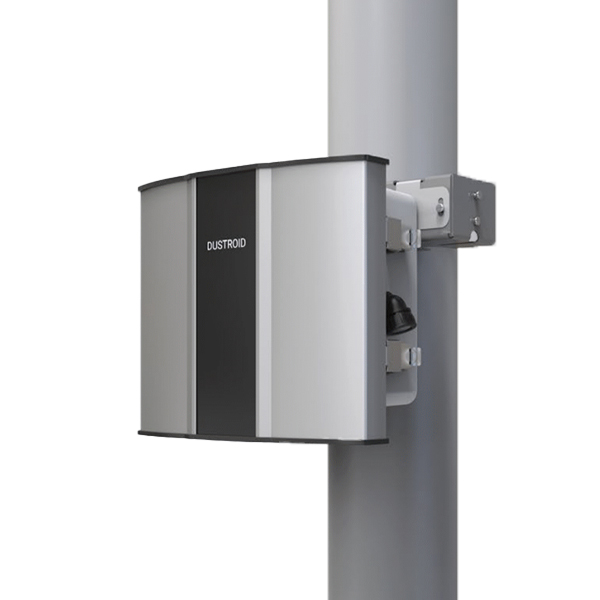

Dustroid® Particulate Monitor

Oizom Dustroid real-time ambient dust monitor for construction, mining, quarries and ports. Active laser sampling of PM1–TSP with optional heated inlet, relay outputs for dust suppression, and solar or AC power for fence-line and worksite networks.

Parameters: PM1 · PM2.5 · PM10 · TSP · Temp · RH · Pressure
Range: PM1/2.5/10 up to 5000 µg/m³ · TSP up to 30 mg/m³
Accuracy: Up to ±10% (optical particle counter)
Output: GSM / LTE · Wi-Fi · Ethernet · LoRa · Modbus · relay
Power: 110–230 VAC or solar · ~5–7 W
Installation: Pole or wall mount · IP66 / NEMA 4X
Calibration: Lab and collocation calibration · field checks per programme
Typical standards: MCERTS · CE · IP66 · NEMA 4X · RoHS

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

Category

Weather Stations

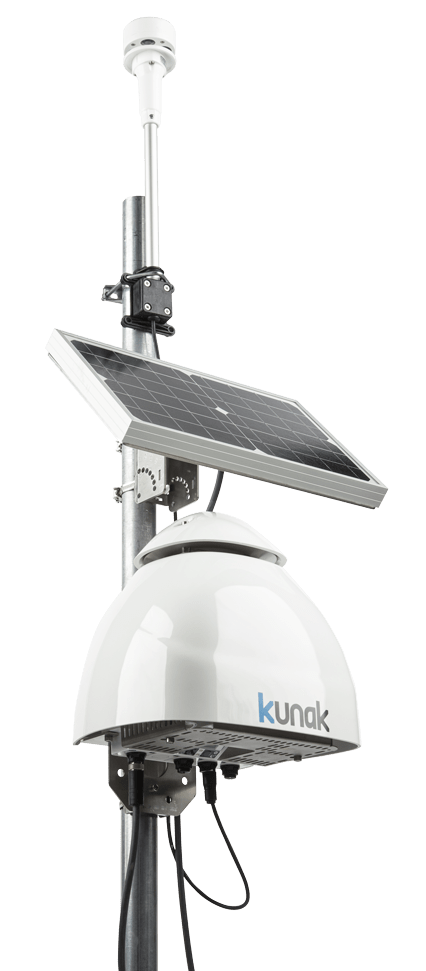

LC-WX-11Meteorology

Compact Weather Station

All-in-one ultrasonic weather station providing the meteorological inputs required for dispersion modelling and source attribution.

Parameters: Temp · RH · Wind speed · Wind dir · Rain · Pressure
Range: 0 – 60 m/s wind
Accuracy: ±0.3 °C · ±3% wind
Output: Modbus RTU / SDI-12
Power: 12 VDC · 0.5 W (solar friendly)
Installation: 10 m mast or rooftop bracket
Calibration: Factory cert · 24-month field check
Typical standards: WMO No. 8 · IP66

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

Category

Water Quality

LC-AQUA-09Water Quality

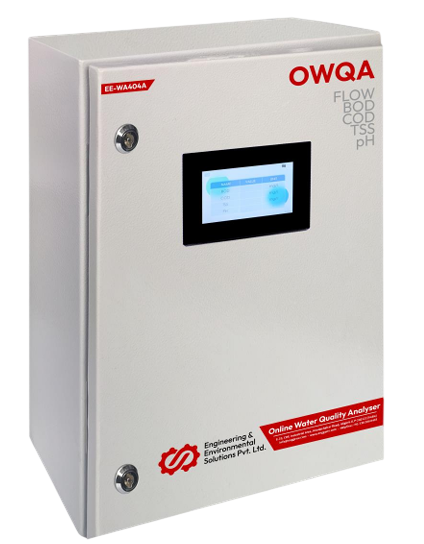

Multi-parameter Water Sonde

Submersible sonde for continuous monitoring of effluent discharge, surface water and tailings dams.

Parameters: pH · DO · EC · Turbidity · Temp · ORP
Range: 0 – 14 pH · 0 – 20 mg/L DO
Accuracy: ±0.1 pH · ±0.2 mg/L DO
Output: SDI-12 / Modbus / 4G gateway
Power: 12 VDC · 0.4 W idle
Installation: Cable-suspended in chamber or river
Calibration: Two-point monthly buffer calibration
Typical standards: ISO 5667 · IP68

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

Category

Noise Monitoring

LC-NOI-07Noise

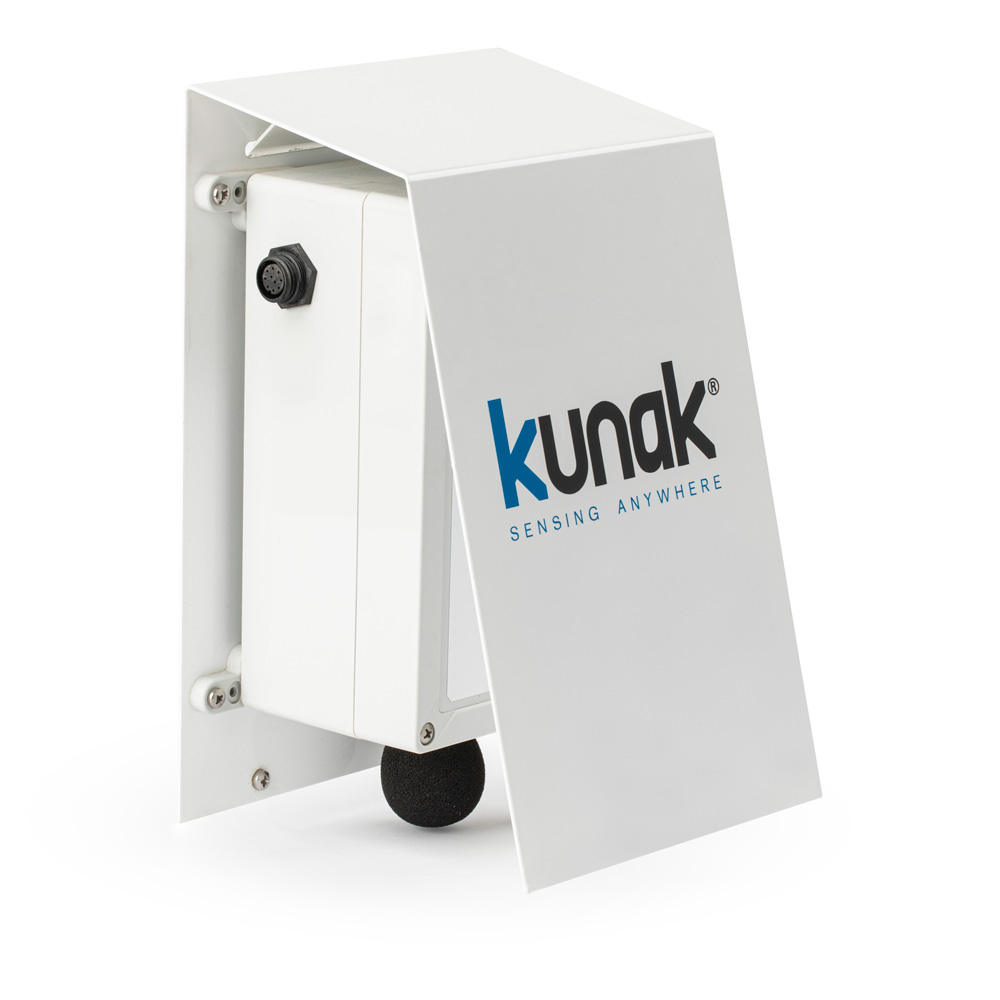

Class-1 Noise Monitor

Permanent outdoor sound-level monitor with weather-protected microphone for boundary, blast and community noise monitoring.

Parameters: dB(A) · Leq · Lpeak · 1/3-octave
Range: 20 – 140 dB
Accuracy: Class 1 IEC 61672-1
Output: Ethernet / 4G / MQTT
Power: Solar 40 W + battery · grid optional
Installation: Pole-mount with windshield & bird-spike
Calibration: Field calibrator before each survey
Typical standards: IEC 61672-1 Class 1

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet

Category

Multi-parameter Stations

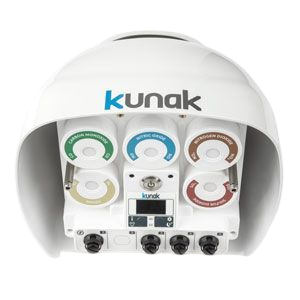

LC-MPS-30Integrated Station

Multi-parameter Edge Station

Configurable cabinet that bundles air, noise and weather modules onto a single edge gateway - ideal for boundary stations and smart-city deployments.

Parameters: PM2.5/10 · NO₂ · O₃ · Noise · Weather
Range: Configurable per module
Accuracy: Module dependent
Output: LoRaWAN / 4G / MQTT / REST
Power: Solar hybrid · 14-day autonomy
Installation: Pole or kiosk cabinet, lockable
Calibration: Per-module field calibration schedule
Typical standards: CE · IP66 · FCC

Standards listed are typical of this product class. Certificates for the unit we quote are confirmed in writing.

Request datasheet
